Lab Task 4.2 - Scenario 1 (Nexus Dashboard Fabric Controller)

Cisco Nexus Dashboard Fabric Controller (NDFC) is a comprehensive management tool designed for data center networks. It offers:

  • Centralized Management: Simplifies the management of Cisco Nexus data center switches.
  • Automation: Automates provisioning, troubleshooting, and policy management.
  • Visibility and Monitoring: Provides real-time network insights and analytics.
  • Scalability: Supports large-scale data center deployments efficiently.

In this task, you will learn how to create Ansible playbooks and automate Nexus Dashboard Fabric Controller (NDFC).

This task is separated into the following steps:

  • Add the switches to the already created Fabric

Step 1: Create folder/file structure

First, you need to create the folder/file structure. Everything marked as a star needs to be created:

markup
POD01
1Repository folder pod01 (Folder)
2
3├── ndfc (Folder)
4
5├──── data (Folder)
6
7│       └── 01_add-devices.yaml (*File)
8
9└──── playbooks (Folder)
10
11        └── 01_add-devices.yml (*File)
12
01_add-devices.yml

Change in line 13 the path to the fabric (middle part of the URL) and use your POD Number. In cases of adding the switches, we need to rely on the REST module as the inventory module supports mainly BGP EPVN-based fabrics. The BU is working to support all kinds of fabrics.

yaml
POD01
1---
2- hosts: ndfc_servers
3  gather_facts: false
4  tasks:
5    - name: Load variables
6      ansible.builtin.include_vars:
7        file: ../data/01_add-devices.yaml
8        name: switch_data
9
10    - name: Add devices via REST call to NDFC
11      cisco.dcnm.dcnm_rest:
12        method: POST
13        path: /appcenter/cisco/ndfc/api/v1/lan-fabric/rest/control/fabrics/pod01/inventory/discover?setAndUseDiscoveryCredForLan=false
14        json_data: "{{ item.inventory | from_yaml | to_json }}"
15      with_items: "{{ switch_data.fabric_data.switches }}"
01_add-devices.yaml

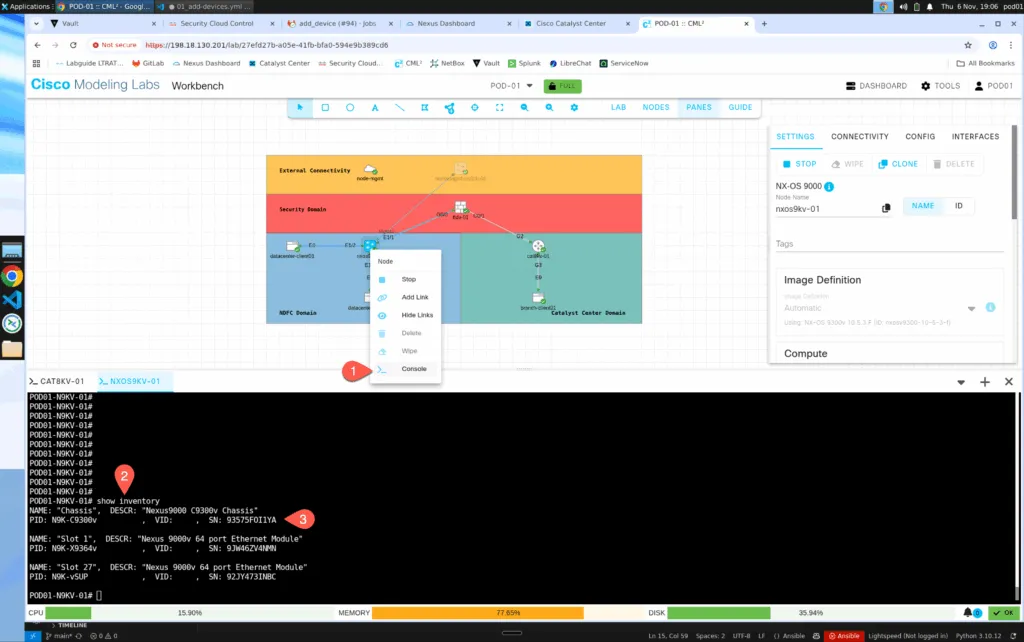

Build your data model and change the highlighted lines accordingly to your POD. To get the serial number, log in to your NXOS9KV-01 using CML.

Please run show inventory via CLI on both devices to get the serial number and copy&paste it to the data model file.

yaml
POD01
1---
2fabric_data:
3  switches:
4    - inventory: '{
5                  "maxHops": "0",
6                  "seedIP": "198.18.1.12",
7                  "cdpSecondTimeout": 5,
8                  "snmpV3AuthProtocol": 0,
9                  "username": "",
10                  "password": "",
11                  "preserveConfig": true,
12                  "discoveryCredForLan": false,
13                  "switches": [
14                      {
15                          "ipaddr": "198.18.1.12",
16                          "sysName": "POD01-N9KV-01",
17                          "deviceIndex": "POD01-N9KV-01(93575FOI1YA)",
18                          "platform": "N9K-C9300v",
19                          "version": "10.3(1)",
20                          "serialNumber": "93575FOI1YA",
21                          "vdcId": 0,
22                          "vdcMac": null
23                      }
24                  ]
25                  }'
Step 2: Run the pipeline

Adjust the pipeline file and check the validation of  the switches and if the switches have been added to NDFC.

.gitlab-ci.yml
yaml
POD01
1stages:
2  - add_device
3
4add_device:
5  stage: add_device
6  tags:
7    - docker-runner
8  image: cbeye592/ltrato-2600:ndfc
9  id_tokens:
10    VAULT_ID_TOKEN:
11      aud: https://198.18.133.99:8200
12  secrets:
13    ansible_user:
14      vault: NDFC/ansible_user@pod01
15      file: false
16      token: $VAULT_ID_TOKEN
17    ansible_password:
18      vault: NDFC/ansible_password@pod01
19      file: false
20      token: $VAULT_ID_TOKEN
21    DEVICE_USER:
22      vault: NDFC/DEVICE_USER@pod01
23      file: false
24      token: $VAULT_ID_TOKEN
25    DEVICE_PASSWORD:
26      vault: NDFC/DEVICE_PASSWORD@pod01
27      file: false
28      token: $VAULT_ID_TOKEN
29  before_script:
30    - source /root/ansible/bin/activate
31    - chmod -R 700 ndfc
32    - cd ndfc
33    - echo "" >> hosts
34    - echo "ansible_user=$ansible_user" >> hosts
35    - echo "ansible_password=$ansible_password" >> hosts
36  script:
37    - "sed -i 's/\"username\": \"\",/\"username\": \"'${DEVICE_USER}'\",/g' data/01_add-devices.yaml"
38    - "sed -i 's/\"password\": \"\",/\"password\": \"'${DEVICE_PASSWORD}'\",/g' data/01_add-devices.yaml"
39    - ansible-playbook playbooks/01_add-devices.yml
Validation

Log in to NDFC, select your fabric, and choose the switch category to view the device inventory.
